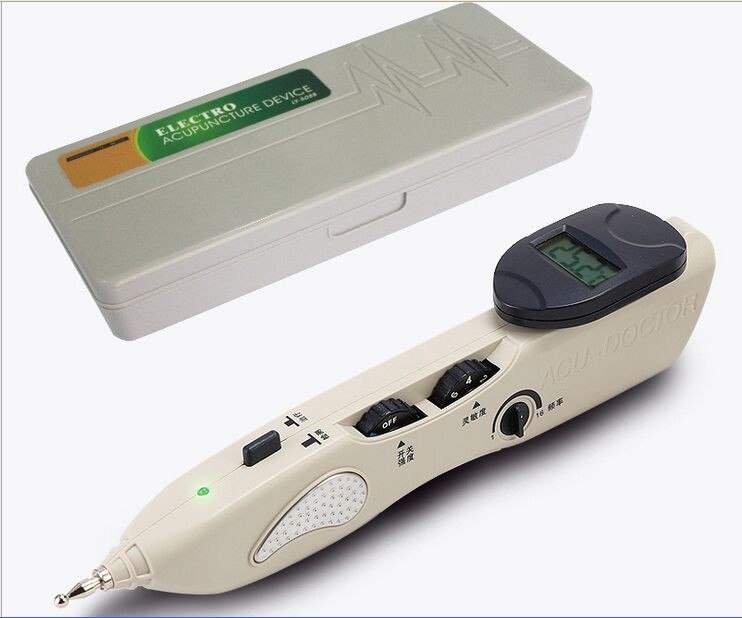

Acupoint Pen - Electro Acupuncture Stimulator

Based on Traditional Chinese Medicine Theory. The Number one intelligent acupoint detection device of the Acupuncture and Moxibustion Therapy device industry. Features a built-in, 0.35” x 1.0” LCD digital display meter for the location of acupuncture and trigger points.

Location and stimulation are independently adjusted with two separate control dials. The frequency is adjustable (1 to 16 Hz) and is displayed on the LCD digital display when the stimulation button is pressed.

The grounding circuit is made by holding the metal plate on the side of the unit or with the hand grounding pole. The two probe tips that are included with the unit: 2 mm (0.08”) suitable for auricular point detection and body 4 mm (0.16”).

Features

• CE Digital LCD display electric acupuncture point pen
• Output Intensity 0 to 10 mA
• Power Supply 9-volt battery
• Micro-current Output 0 to 2 microamps
• Sensitivity Adjust Control 0 to 10
• Frequency Control 1 to 16 Hz
• Large LCD Digital Display Frequency / Sensitivity Indicator
• Indicator Lamp Pulse Rate Indicator
• Pulse Width 220 microseconds
• Pulse Modes Continuous
• Pulse Shape Asymmetric biphasic square wave
• Point Detection Meter, Sound and Light Indicators
• Output Channels One
• Batteries Not Included Acupoint pen
• ISO and CE approved
