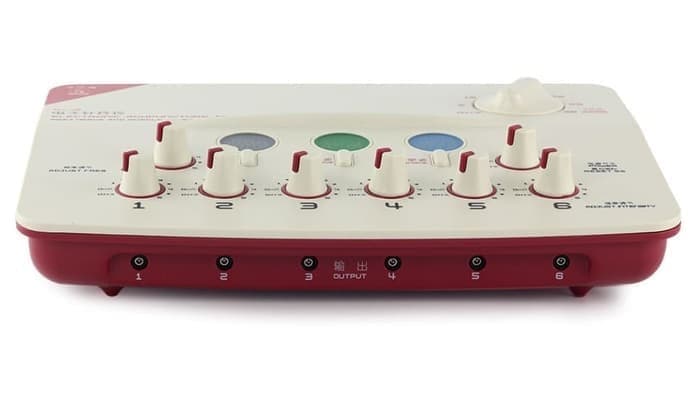

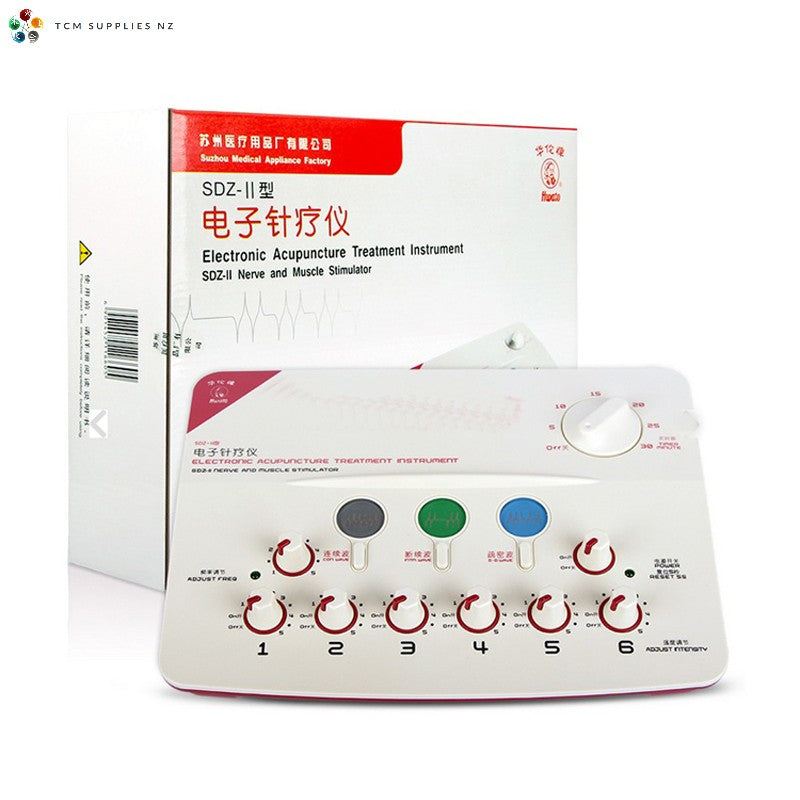

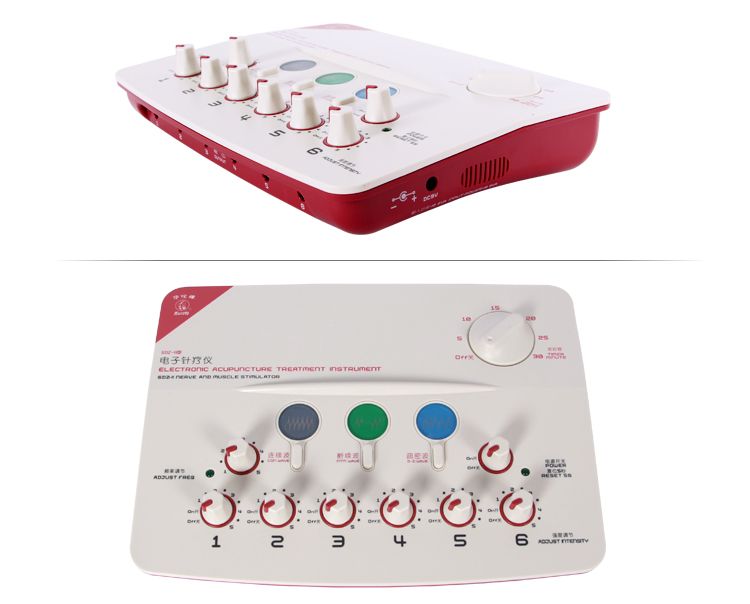

Hwato SDZ-II Electronic Acupuncture Stimulator

The New Hwato SDZ-II Electronic Acupuncture Instrument (Nerve and Muscle Stimulator) combines modern technique with Traditional Chinese medicine, Acupuncture, and Jing-Luo theory.

Features

• Six output channels
• Continuous, intermit, and dense-disperse (modulated) waveforms
• Adjustable frequency: 1-100Hz
• Durable alligator clip wires
• Timer: 0-60 minutes
• Battery & Mains power operation - (NZ power adapter required)

Technical specifications:

• Output pulse amplitude: 0-50V (on 500 ohm load).
• Adjustable Pulse frequencies: continuous wave - 1-100 Hz Adjustable, Intermittent wave: continuous wave frequency adjustable in 1-100Hz. Break-wave time is 5 seconds, continuous wave time is 15 seconds, a Dense-disperse wave spacing the wave frequency and density of frequency, wave frequency adjustable in 5 - 100Hz.

• Pulse width: 1ms
• Output Jack: 3.5 mm diameter jack
• Unit dimensions: 260 x 190 x 110mm (10" x 7.5" x 4.3")

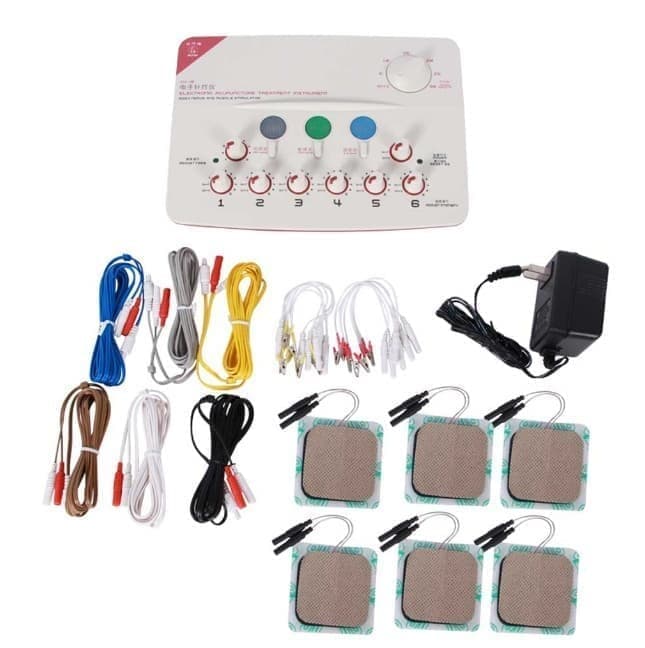

Accessories:

• 6 connecting pin lead wires
• 6 pairs of alligator clips to connect to the pin lead wires
• 6 pairs of self-adhesive electrodes to connect to the pin lead wire
• 1 Chinese Instruction Manual.

This device should be used by qualified practitioners or under the supervision of a qualified practitioner.

Please note, that this unit comes with an English instruction manual, you can download a copy of the English instruction manual and warranty details below.

(Hwato SDZ II English Manual)
